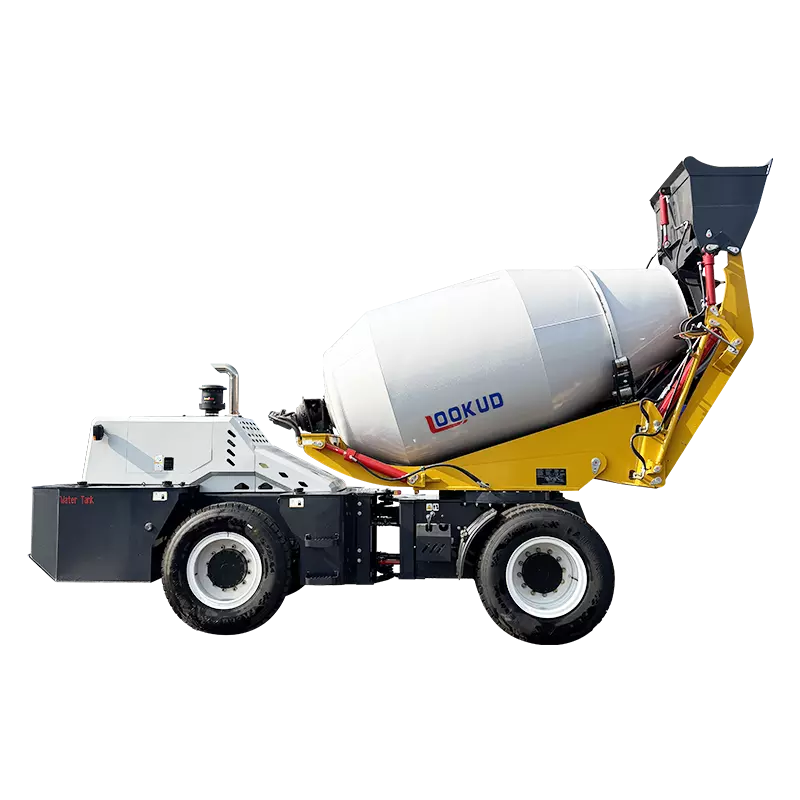

5 Cubic Model Details
| Vehicle Parameters | |||||
| OveralI Dimensions（L×W×H） | 8778×3050×3640 | ||||
| Wheel Base（mm） | 2860 | ||||
| Curb Weight（Kg） | 10500 | ||||
| Drive Form | 4WD 4×4 | ||||
| Maximum Speed（Km/h） | 35 | ||||
| Maximum Gradeability（°） | 40 | ||||
| Minimum Ground Clearance（mm） | 300 | ||||
| Engine | Gearbox | ||||
| Model | Weichai 6105 Turbocharging | Model | JBJ-428 Power Shift Gearbox | ||
| Rated Power | 92KW | Gearshift | 4 Forward +4 Back | ||
| Sevice Refill Capacites | Parameters of Hydraulic System | ||||
| Fuel Tank（L） | 150 | Reducer | 5F-300B | ||
| Hydraulic Oil tank（L） | 150 | Motor | A2FM63 | ||
| Engine Oil Capacity（L） | 12-13 | ||||
| Parameters of Water Supply | |||||
| Water Tank（L） | 900 | ||||
| Water Supply | Time Relay | ||||
| Mixing and Unloading | |||||
| Double-cone drum with double-spiral mixing screws and convex bottom | |||||
| Geometrical drum volume | 8.28m³ | Drum rotation speed | 20 r/min | Concrete produced as | 5m³/drum |
